Download & Install

Get started with Resolver by downloading and installing the VC ConnectorSoftware plugins, developed by RTR, that enables the export of projects from 3rd party simulation tools such as Process Simulate and Visual Components for use with Resolver. The Connector also enables....

To download, please first login to your location-specific Resolver page, the click on Downloads in the bottom left.

Login to Global App

Login to Europe App

After download, there are two ways in which a user can install the Connector. The Windows Installer is the preferred method. The Legacy Installation Process steps can be used as an alternate method.

---

Windows Installer (Preferred)

1. Close Visual Components before continuing.

2. Unzip the downloaded file and double-click the RTR-VC-Connectors-Setup.exe file to install the application.

3. Select whether you would like to install the VC Connector for the current user or all users.

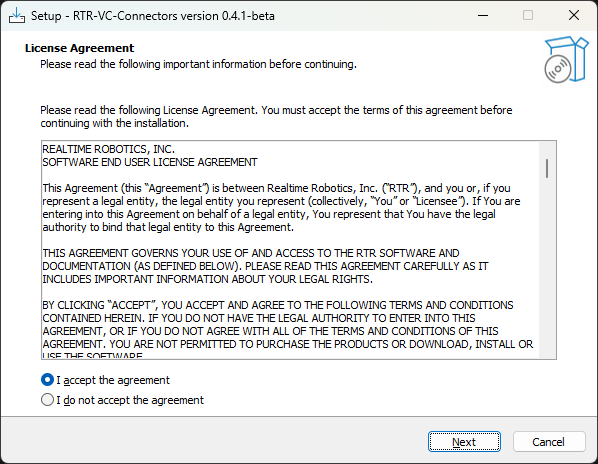

4. Read and accept the user License Agreement



5. After pressing "Next" select "Install to existing version or versions".

6. Select the folder to save the ConnectorSoftware plugins, developed by RTR, that enables the export of projects from 3rd party simulation tools such as Process Simulate and Visual Components for use with Resolver. The Connector also enables.... C:\Program Files is the default and recommended folder.

7. Select the versions of Visual Components to install to.

8. Press Install and Finish after the installation is complete.

9. Open Visual Components

10. To add the Resolver panel, click the dropdown menu at the top-right corner of the UI.

11. Enable Realtime Robotics Connector by checking the corresponding option.



Legacy Installation Process (Manual registration of DLLs)

Follow the steps below to manually add the .DLL files to the Visual Components folder. This is not necessary if the “Windows Installer” process was completed.

1. Close Visual Components before continuing.

2. Unzip the downloaded file and double-click the RTR-VC-Connectors-Setup.exe file to install the application.

3. Select whether you would like to install the VC Connector for the current user or all users.

4. Read and accept the user License Agreement.



5. Choose the folder where you want the files to be extracted to.

6. Select the Visual Components versions that you want.

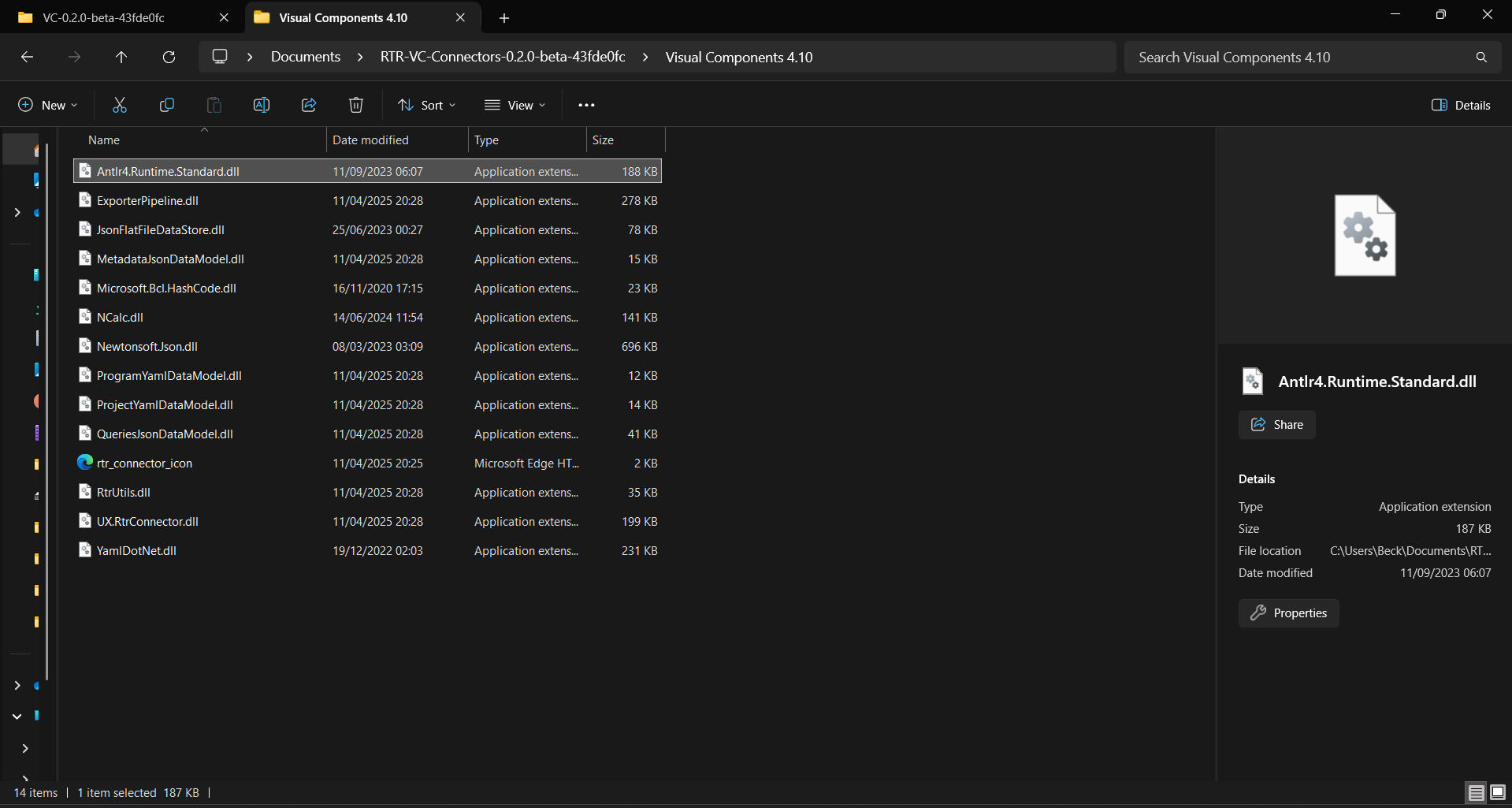

7. Navigate to the folder you specified for the files to be extracted

   • It is important to access the correct folder for the VC version you want, as the ConnectorSoftware plugins, developed by RTR, that enables the export of projects from 3rd party simulation tools such as Process Simulate and Visual Components for use with Resolver. The Connector also enables... files will differ from version to version.

8. Now you have all the files of the connector.



9. Copy all the files to the appropriate installation folder:

   • For Visual Components:

     C:\Program Files\Visual Components\Visual Components 4.10\

     📌 Select the folder with the correct version-specific subfolder, such as Visual Components 4.10.

10. Open Visual Components.

11. To add the Resolver panel, click the dropdown menu at the top-right corner of the UI.

12. Enable Realtime Robotics Connector by checking the corresponding option.
